GARFLEECE CLASS B (F)

  • home
  • GARFLEECE CLASS B (F)


Applications

Used in motors & generators: As slot insulation / Closure, phase insulation / overhang, interlayer insulation Core insulation for dry type transformers: As layer insulation for coils as well as core & cover insulations, Conductor Insulations. For choke coils, conductor & shaped components. We also undertake fabrication activities.

GARFLEECE : FLEXIBLE INSULATING MATERIAL CLASS 'B' (F)

PRODUCT COMPOSITION

P.C. Laminations GARFLEECE B (F) laminates are composites of polyester fleece on either side of Polycoster film glued together with excellent quality thermosetting adhesive. Polyester film's high electrical & mechanical strength are complemented by good impregnating properties of the polyester fleece.

ADVANTAGES

 Excellent electrical and mechanical properties .
 Excellent impregnating capacity.
 Suitable for automatic insertion.
 Protection against the influence of hydrolysis and chemical actions.
 Saves on copper and steel for rated power.
 High Flexibility

QUALITY CONTROL

Quality norms are top priority at P.C. Laminations to ensure customer's delite with both Product Quality & Services. Regular on line checks & control of tensile strength, elongation, B.D.V, & bond strength contribute to consistency of quality.

AVAILABILITY

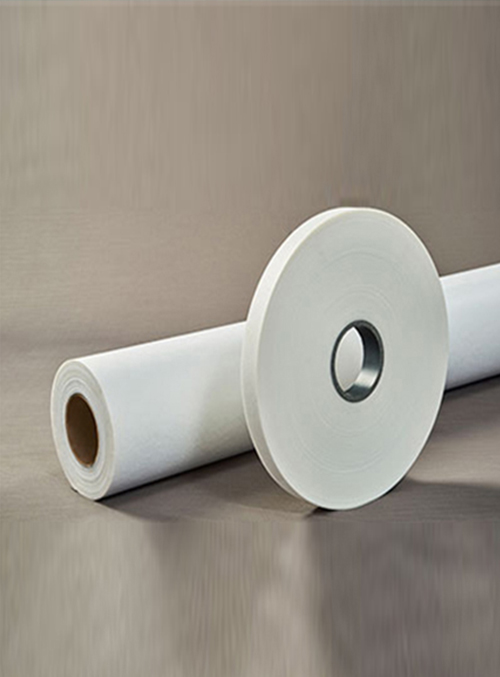

GARFLEECE Composites are available in various forms such as sheets, rolls & narrow widths on request for various applications. GARFLEECE can also be made available in 2 layers on request.

GENERAL SIZES

Rolls of 910 MM. Tapes of width 8 MM above. Composites produced in various thicknesses ranging from 0.13 mm to 0.45 mm. We also supply fabricated components.
