GARFLEECE (SATURATED) CLASS F

  • home
  • GARFLEECE (SATURATED) CLASS F


Applications

Used in motors & generators: As slot insulation / Closure, phase insulation / overhang, interphase insulation. In Dry Type Transformers: As layer insulation for coils For choke coils, conductor & shaped components.

GARFLEECE (SATURATED) : INSULATION CLASS 'F'

GARFLEECE (SATURATED) : INSULATION CLASS 'F'

P.C. Laminations GARFLEECE (IMPG) laminates are composites of polyester film with resin impregnated non-woven polyester fleece on either side. These are glued together with superior adhesive : The polyester non-woven fleece with fully cures impregnated resin protects the polyester film at high temperatures against oxidation, hydrolysis & mechanical damages.

ADVANTAGES

 High electrical & mechanical strength.
 Protects polyester film at high temperatures.
 Resistance to other impregnation agent.
 Easy insertion.
 High smoothness.
 Remarkable Varnish Absorption

QUALITY CONTROL

Quality norms are top priority at P.C. Laminations to ensure customer's delite with both Product Quality & Service. Regular on line checks & control of tensile strength, elongation B.D.V & bond strength contiable to consistency of quality.

AVAILABILITY

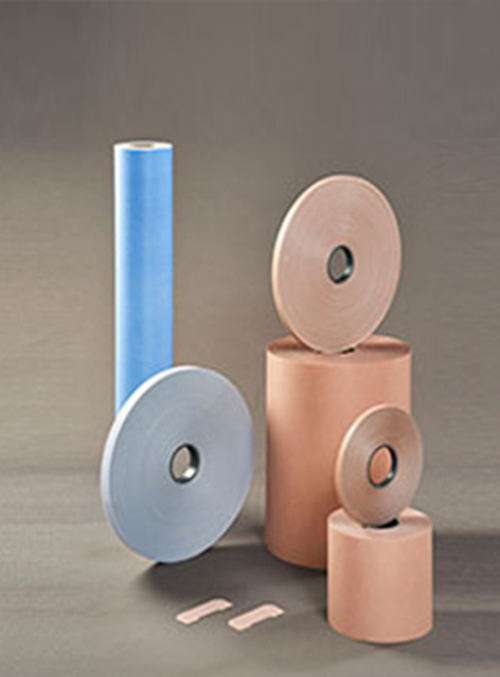

P.C. Laminations GARFLEECE (SATURATED) Composites are available in various forms such as sheets, rolls & narrow widths on request for various applications. GARFLEECE can also be made available in 2 layers on request

GENERAL SIZES

Rolls of 910 MM. Tapes of width 8 MM above. Composites produced in various thicknesses ranging from 0.13 mm to 0.45 mm. We also supply fabricated components.
