GARTHERM CLASS F



Applications

Used in motors & generators: As slot insulation / Closure, phase insulation / overhang, interphase insulation. In Dry Type Transformers: As layer insulation for coils. For choke coils, conductor & shaped components.

GARTHERM : FLEXIBLE INSULATING MATERIAL CLASS 'F'

P.C. Laminations GARTHERM® Laminates are composites of Nomex® paper laminated on either side of Polyester Film using high quality adhesive. High electrical and mechanical strength of polyester film is complemented by high temperature resistance of the Nomex® Paper. P.C. Laminations GARTHERM® are produced in various combination to cover various needs of electrical industries.

ADVANTAGES

 GARTHERM® composites have very good dielectric and mechanical properties.
 High chemical and solvent resistance.
 Protects the influence of hydrolysis.
 Suitable for automatic insertion.
 Superior Varnish absorption & Flexibility for Uncalendered Composites Higher Thermal Endurance

QUALITY CONTROL

Quality norms are top priority at P.C. Laminations to ensure customer's delite with both product quality & services. Regular on line checks & control of tensile strength,elongation, B.D.V, & bond strength contribute to consisting of quality.

AVAILABILITY

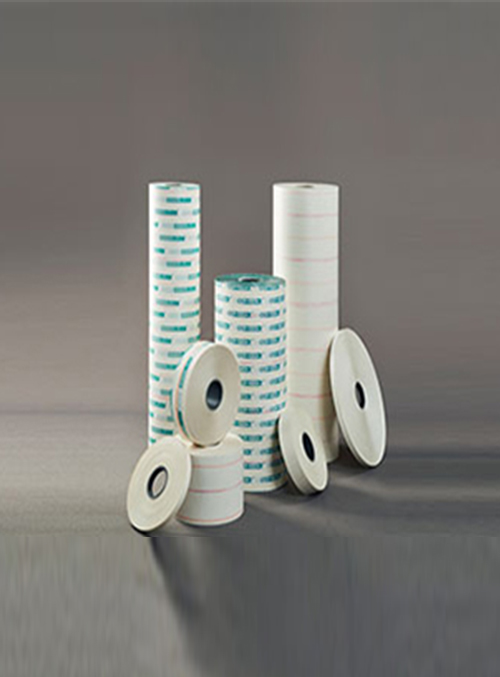

P.C. Laminations Gartherm® Class F Composites made from 0.05mm, 0.08mm, Calendered & Uncalendered 0.13mm Nomex® paper are available in various forms such as sheets, rolls & narrow widths on request for various applications. Gartherm® can also be made available in 2 layers on request.

GENERAL SIZES

Rolls of 910 MM. Tapes of width 8 MM above. Composites produced in various thicknesses ranging from 0.13 mm to 0.63 mm. We also supply fabricated components.
