GARFLEECE CLASS B (F)



Applications

Used in motors & generators: As slot insulation / Closure, phase insulation / overhang, interphase insulation.

GARKON : INSULATION CLASS 'H'

GARFLEECE (SATURATED) : INSULATION CLASS 'F'

P.C. Laminations GARKON composites are of Nomex® paper laminated on either side of Polyimide® film. The lamination is achieved through high quality thermosetting adhesive. The excellent Mechanical, Thermal & Electrical values of Polyimide film are complimented with the very good chemical & Thermal properties of Nomex® P.C. Laminations GARKON are produced in various combination.

ADVANTAGES

 Have very good Electrical, Mechanical and Thermal properties
 High dielectric strength even at high temperatures.
 Good impregnating Capacity.
 Suitable for automatic insertion.
 Excellent Chemical Resistance.
 Higher thermal endurance for prolonged periods.

QUALITY CONTROL

Quality norms are top priority at P.C. Laminations to ensure customer's delite with both Product Quality & Services. Regular on line checks & control of tensile strength, elongation, B.D.V, & bond strength contribute to consistency of quality.

AVAILABILITY

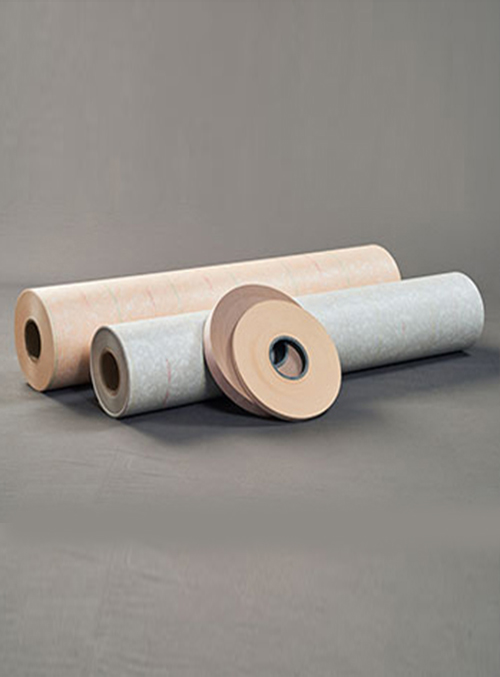

GARKON Composites are available in various forms such as sheets, rolls & narrow widths on request for various applications. GARKON can also be made available in 2 layers on request.

GENERAL SIZES

Rolls of 910 MM. Tapes of width 8 MM above. Composites produced in various thicknesses ranging from 0.14 mm to 0.47 mm. We also supply fabricated components.
